Video Surveillance Industry Solutions
Project Background
Network video surveillance can achieve remote monitoring and management, but because it is only one-way point-to-multi point video transmission, there is nothing to do with emergency command and coordinated scheduling after an emergency. However, the emergency command and dispatch and collaborative work for emergencies is the most critical aspect of a monitoring system, and it also best reflects the advanced nature of a monitoring system. In order to strengthen management and monitoring, a large-scale video surveillance network has been built, and advanced network monitoring means are used to achieve remote management, improve efficiency and strengthen prevention.

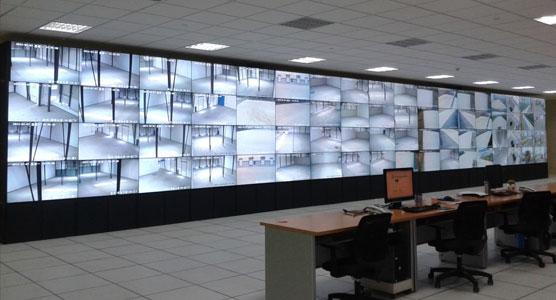

Garbo Logistics Park
Project Requirements：
2. Signal needs to be polled.
3. Need to create scenes.
Solution:
The project display mode uses 72 pieces 46 inch LCD, arrangement is 4 * 18 spliced. The front-end multi-channel signal is connected to the video wall controller, outputted to the video wall through the switching process, realizes various display functions such as splicing, roaming, PIP, and overlay etc.
Features：
Multiple scenes unified management
Multiple scenes can be created through the BV series video wall controller, any scene can be retrieved at any time, and flexible management operations can be performed.
Signal seamless switching
The video integrated platform processor is based on the pure hardware architecture of the FPGA, the chip can achieve the best performance and realize the seamless switching of the high-definition signal.
Scene polling
A scene can be set up to establish a loop playback mechanism for multiple input signals, so that each input signal can be regularly displayed on the video wall.

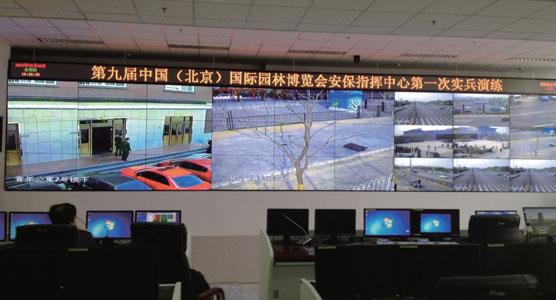

Garden fair
Project Requirements：
2. Signal needs to be polled.
3. Need to create scenes.
Solution:
The project display mode uses 27 pieces 55 inch LCD, with BV series video wall controller, the front-end multi-channel monitoring video signal access system is spliced by the controller.
Features：
Multiple scenes unified management
Multiple scenes can be created through the BV series video wall controller, any scene can be retrieved at any time, and flexible management operations can be performed.
Signal seamless switching
The video integrated platform processor is based on the pure hardware architecture of the FPGA, and the chip can achieve the best performance and realize the seamless switching of the high-definition signal.
Group management
Grouping and managing signal source groups for regional grouping, functional classification to improve the regulatory efficiency of managers.

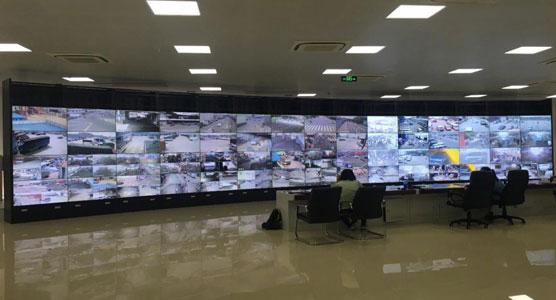

Shanghai Jiangyang Agricultural Products Wholesale Market
Project Requirements：
2. Signal needs to be polled.
3. Need to create scenes.
Solution:
The project display mode uses 85 pieces 46 inch LCD, with BV series video wall controller, the front-end multi-channel monitoring video signal access system is spliced by the controller.
Features：
Multiple scenes unified management
Multiple scenes can be created through the BV series video wall controller, any scene can be retrieved at any time, and flexible management operations can be performed.
Multi-user management
User-friendly simple operation interface, hierarchical and decentralized user security management, providing users with a more convenient, secure, reliable and scalable comprehensive management platform.
Redundant power management
Ensure system stability, continuous operation for a long time, and ensure that the monitoring system is no lost.
