LCD Video Wall

What is LCD video wall and its application

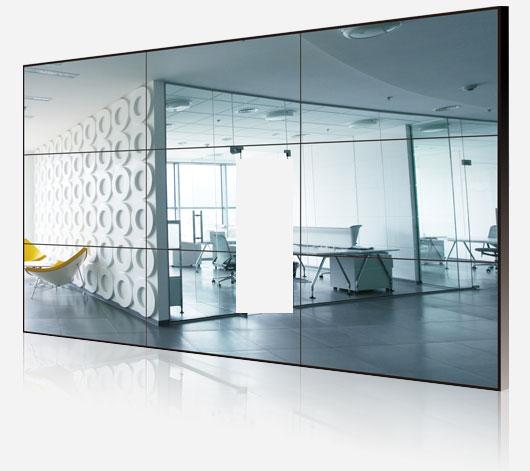

LCD video wall is a large display composed of multiple LCD panels tiled together to form a single screen. These video walls are capable of displaying high-resolution images and videos with exceptional clarity and brightness, making them ideal for a wide range of applications, including advertising, education, entertainment, and surveillance.

Configuration

LCD video walls come in a variety of sizes and configurations, from small 2x2 setups to massive installations comprising dozens of panels. They offer an immersive viewing experience, making them popular in public spaces, conference rooms, and command centers.
LCD video wall and panel

Features

·Narrow frame design,The highest of 15×15, 256 displays free to combine
·Low & High brightness versions with excellent viewing angles suitable for indoor applications
·R Ohs standard
·Long time without failure, Designed for 24/7 usage
·Professional grade LCD displays with LED backlit with lifespan 100,000hr
·High performance of splicing processor can expand to support larger walls and numbers of source
·Support large size combination
·Low maintenance cost
·FHD 1920×1080 display resolution makes perfect and vivid picture
·Low calorific value,Build-in fan control, cool and quiet operation
·Support USB drive upgrade
·Use automatic processor
Full Hardware FPGA Architecture

Using IPS Hard Screen

IPS screens offer more accurate color reproduction. It can display a wider color gamut, making the image more real and vivid

fas fa-adjust

Higher contrast and saturation

Resulting in better detail and deeper blacks in bright and dark areas of the image.

fas fa-th-large

Large viewing angle

The degree of color change is the same when viewed head-on as when viewed from different angles.

far fa-image

Hight image quality

With brilliant display effects and great ability to show color in its most real status.

fas fa-air-freshener

Energy saving

Reduces the power of the backlight to achieve the effect of energy saving and power saving.

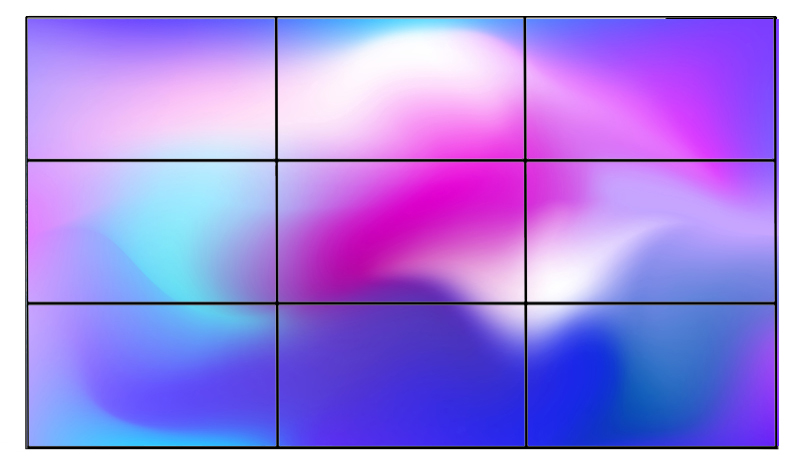

Support large size combination

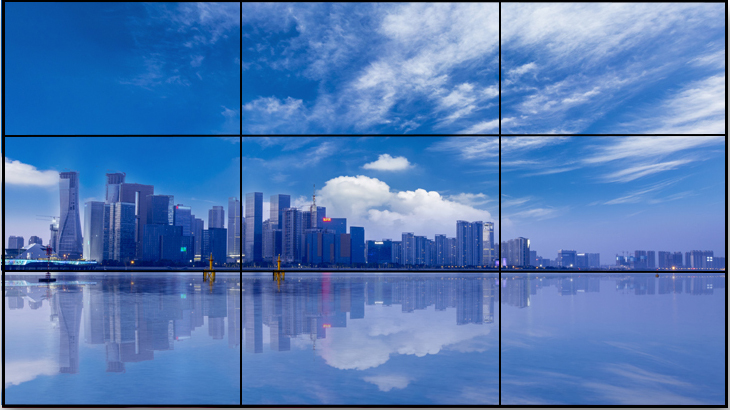

The LCD video wall is to form a seamless large-size display screen by connecting multiple LCD display screens together.

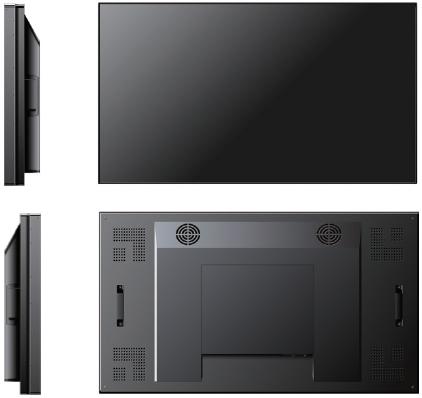

Product Structure

HDMI Interface LCD Video Wall

HDMI Interface LCD Video Wall

Download
DP Interface LCD Video Wall

DP Interface LCD Video Wall

Download
LAN Interface LCD Video Wall

LAN Interface LCD Video Wall

Download

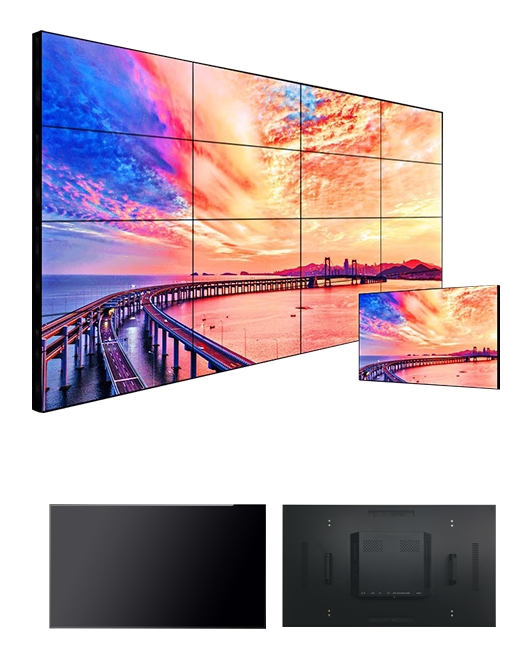

49"Super Narrow Bezel 3.5mm LED Backlit LCD Tiled Display

49-inch tiled display adopts plasma panel with brightness up to 700nit, which can restore the true color effect 3.5mm for the bilateral border creates the ultimate video wall with screens that are seamlessly connected and picture perfect. The color consistency can be achieved by adjusting the white balance through the software. Built-in temperature sensor device can feedback real-time temperature and control body temperature, as well as accurately make heat radiation. 49-inch tiled display adopts modular hardware design, which makes the maintenance much more convenient without removing the screen body.
49" LCD Video Wall Parameter-H4930LN
Screen Size
Brightness
Pixel Pitch
Viewing Angle
49"
500 cd/m²
0.56(H) x 0.56(V) mm
178°(H) / 178°(V)
Resolution
Contrast Ratio
Refreshing Frequency
Life Time
1920×1080(FHD)
1200:1
60 Hz
>50,000 hrs
2x2 Video Wall

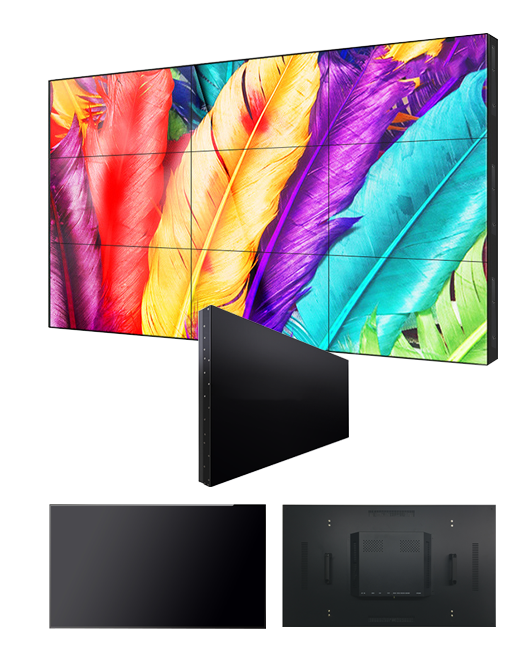

55"Super Narrow Bezel 0.88mm/1.8mm/3.5mm LED Backlit LCD Tiled Display

55-inch tiled display adopts LED full-array type backlight panel, which has more uniform brightness and vibrant colors. 0.88mm/1.8mm/3.5mm for the bilateral border and the top-level processing chip with iSEMC video-wall software, without any additional devices, it can display pictures in single screen or areas or zoom to full-screen without any distortion. Professional calibration software equipped with the color sensor ensures the consistent light output of every display.
55" LCD Video Wall-H55(10LN/HN-18LN/HN-30LN)
Screen Size
Brightness
Pixel Pitch
Viewing Angle
55"
500/700 cd/m²
0.63(H) x0.63(V) mm
178°(H) / 178°(V)
Resolution
Contrast Ratio
Refreshing Frequency
Life Time
1920×1080(FHD)
1000:1/1100:1/1200:1
60 Hz
>50,000 hrs
3x3 Video Wall

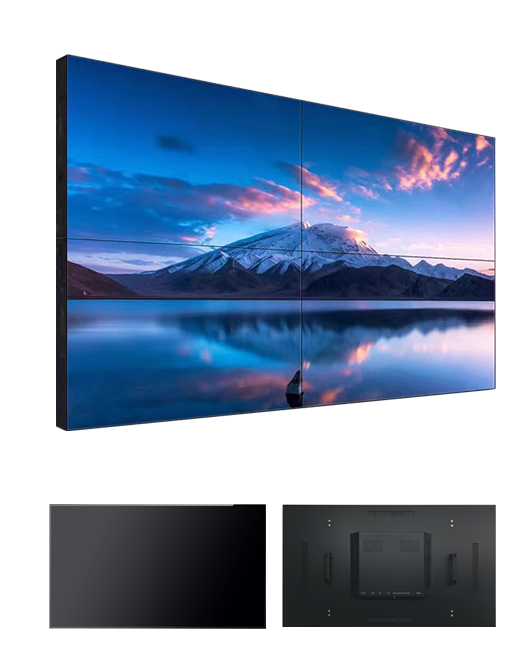

65"Super Narrow Bezel 3.5mm LED Backlit LCD Tiled Display

65-inch tiled display adopts LED full-array type backlight panel, which has more uniform brightness and vibrant colors. 3.5mm for the bilateral border and the top-level processing chip with iSEMC video-wall software, without any additional devices, it can display pictures in single screen or areas or zoom to full-screen without any distortion. Professional calibration software equipped with the color sensor ensures the consistent light output of every display. It can achieve the maximum 15x15 wall format, supporting 7x24 hours continuous work, which suit for advertising, information broadcasting and other industries with long running operation.
65" LCD Video Wall Parameter-H6530LN
Screen Size
Brightness
Pixel Pitch
Viewing Angle
65"
500 cd/m²
0.372(H) x0.372(V) mm
178°(H) / 178°(V)
Resolution
Contrast Ratio
Refreshing Frequency
Life Time
3840 x 2160(UHD)
1200:1
60 Hz
>50,000 hrs
4x4 video wall
