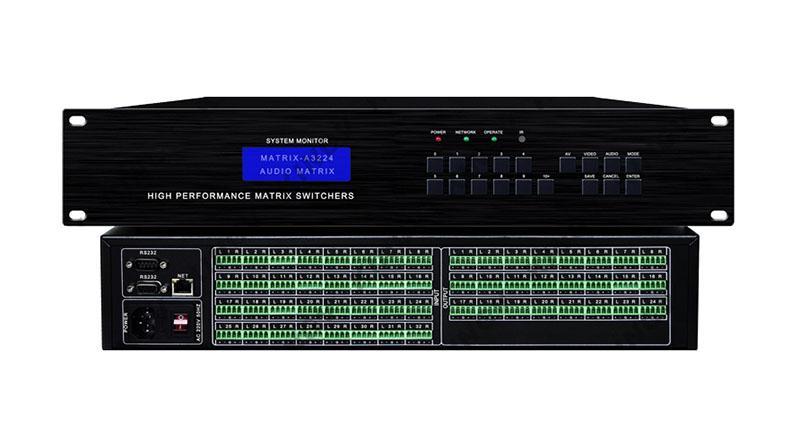

AM Series
AM Series
AM Series is an audio matrix for switching and distributing stereo audio signals. The output has any channel distribution function. The audio matrix switcher can be widely deployed in dispatching rooms, command and control centers, multimedia conference rooms, audio-visual exhibition halls, and video surveillance industries.
Features
  • Built-in round-robin switching function, support set the interval time and channel arbitrarily and support 32 scenes
  • Open control protocols and protocol standards, support third-party and customer self-developed software control
  • With 1 x network interface, Dual serial port RS-232 and RS-485 communication interfaces, dual serial port design
Title
Specification
Input Interface
RCA / 3PIN
Output Interface
RCA / 3PIN
Input / Output Channel
Maximum support 32 channels input/output
Audio Input And Output Level
+19.3Vp-p
Switching speed
50ms
S/N Ratio
≥91dB
Voltage
110~240V,50/60Hz
Power
<10W
