AM Series
TK-FHD

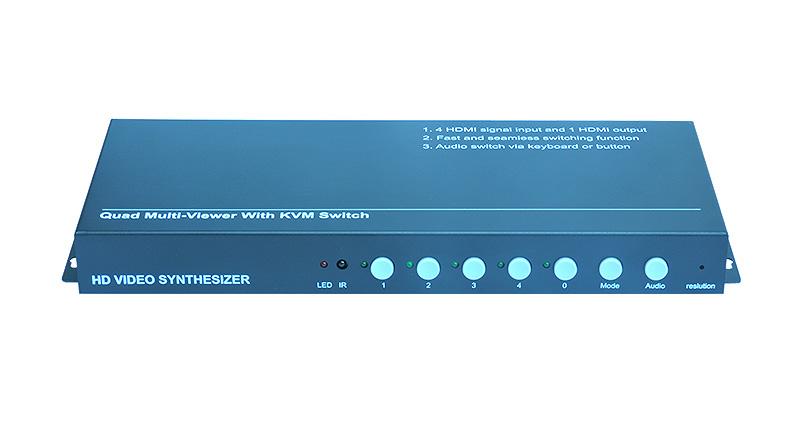

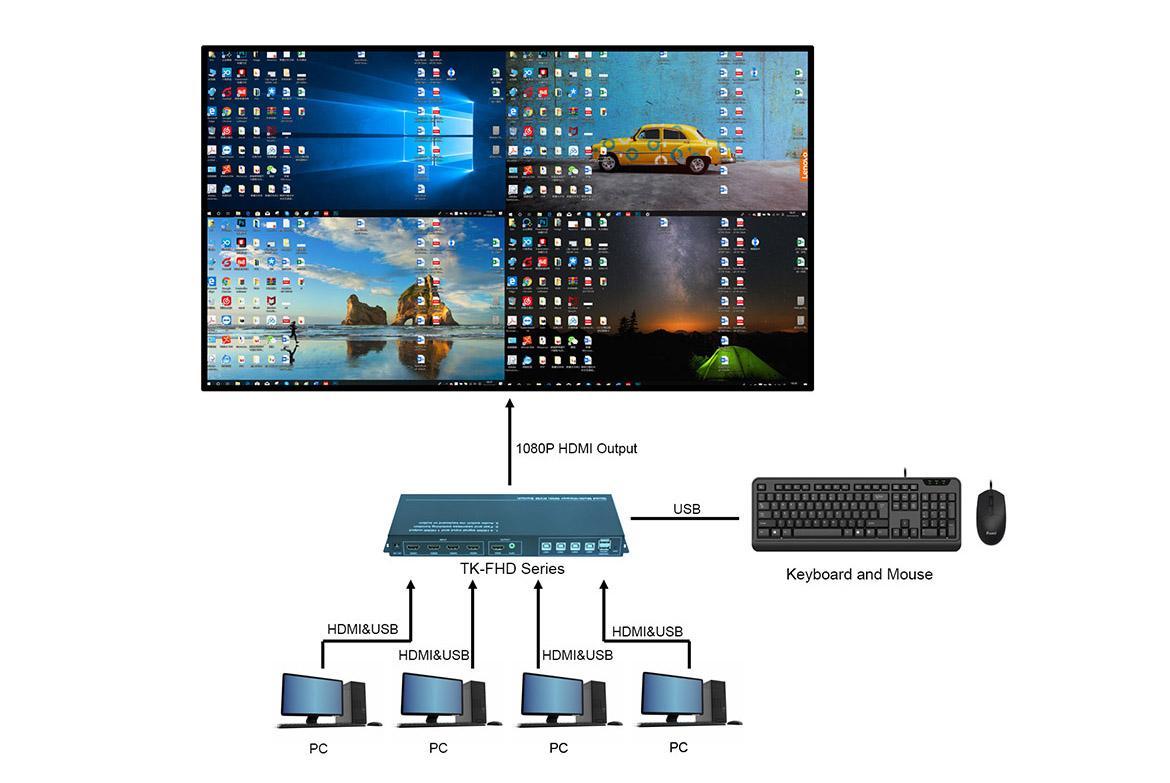

TK-FHD is a multiviewer 4 channels input and 1 channel output with KVM. The main function is to convert the 4 x HDMI signals input to the multiplexer into one HDMI signal output, so that 4 digital signals are displayed on a HD display unit at the same time.
Features
  • A single display unit supports four-split,left-right two-split,up-down two-split,full-screen display modes
  • Output HDMI embedded audio,which can realize video + audio synchronization
  • Support seamless switching of the second-cut function,all single-screen or different split modes switch without black screen
  • Support 3.5mm audio interface output,realize video + audio synchronization
  • Support mouse crossing,audio and KVM follows the mouse movement to switch functions,realize free control
  • Support chassis button,infrared remote control, and keyboard hotkey control functions
Name
Specification
Input Interface
4 x HDMI / 4 x USB
Input Resoultion
1920 x [email protected] and downward compatibility
Output Interface
1 x HDMI / 1 x 3.5mm audio
Output Resoultion
1920 x [email protected] and downward compatibility
Color
24bit, 16.77 million colors
Splicing Mode
1 x 2, 2 x 2, 2 x 1, full screen
Control Method
Chassis button, remote control, keyboard hot keys
Safety
Hardware structure, no virus interference
Continuity
365 days, 7 x 24 hours operation
Voltage
DC 12V
Power
<15W
Size
288mm(L) x 30mm(W) x 119mm(H)
Weight
0.75KG
