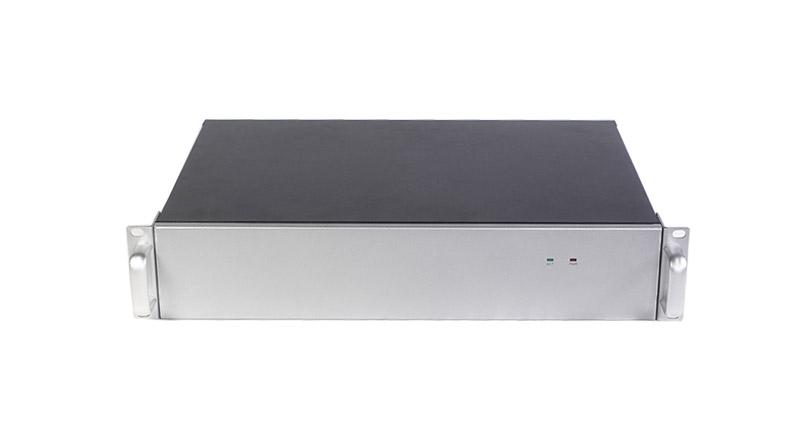

VKL Series Video wall controller
VKL Series Video Wall Controller
VKL Series video wall controller is new generation Commercial Video Wall Controller product which is based on the development of multi-windows, ultra-high definition and visual display control technology. Compare to other video wall controller in the market, VKL supports ultra-high single-channel bandwidth, reaching 6.5G, so that there is a significant advantage on the processing speed and professional display control.
Features
  • Pure-hardware FPGA Array, modular design, parallel video processing hardware systems;
  • Hot-swappable for I/O modules, control modules, easy to upgrade and maintenance;
  • DVI , HDMI input and output;
  • Opening 2 windows on each one screen;
  • Up to 4 video wall groups control on single controller and work with variety of display terminals such as LCD, DLP, projector;
  • Scene management, including save, switch, recall, recycle, Maximum support 128 scenes;
  • Variety of control methods such as RS232, Network and compatible with third party control system;
  • Multi-user control management, software can be set through the operation authority, according to the authority level to develop different operating functions, different levels, different operating privileges, and can be set at any output authority range;
  • C/S visualization control platform, support roaming, overlay, zoom in/out, multi-window switching;
  • Picture-in-picture, signal clip and a variety of display modes such as split screen, full screen and combination screen;
  • EDID, customize the output resolution according to the physical resolution of the display system;
