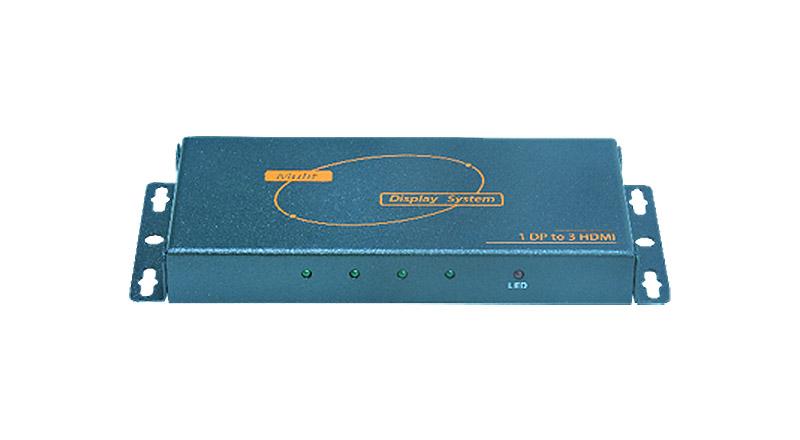

CM-UHD

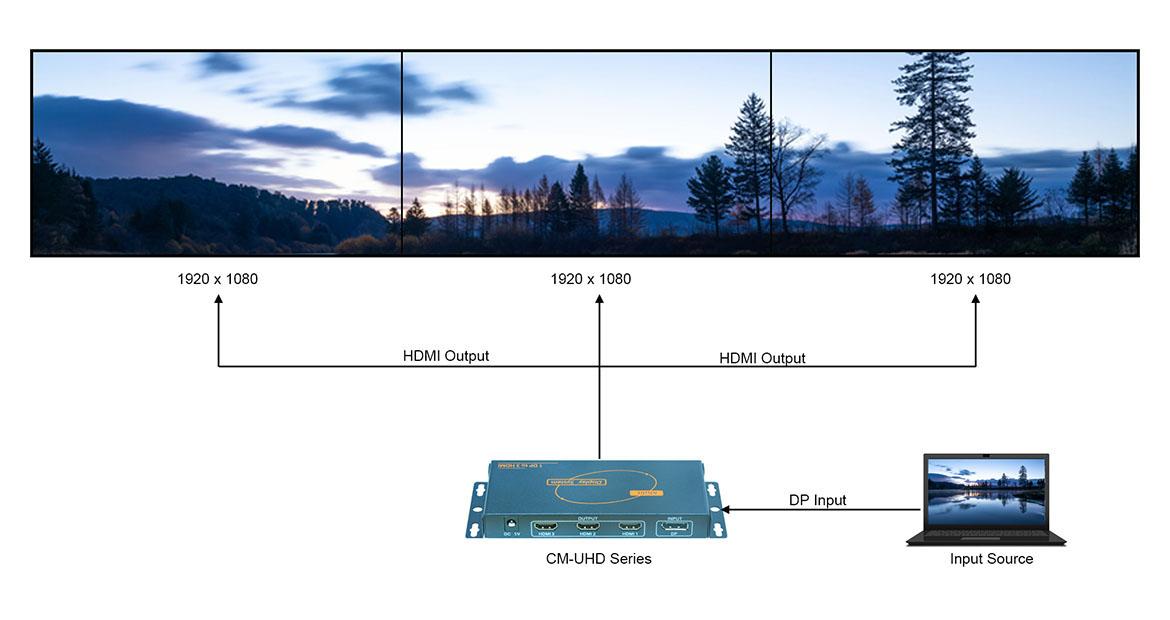

CM-UHD series is a multi-display adapter 1 channel input and 3 channels output that supports 1 x DP signal input and 3 x HDMI signal outputs. Its main function is to make a computer's DP output expand 3 x HDMI signals, and achieve that each output HDMI interface can run a program full screen.
Features
Support 1 x DP signal input, 3 x HDMI output，Each output support 1920 x 1200 @ 60Hz
Support three-screen expansion,and support backward compatible two-screen expansion
- Each output can run and make the program full screen display
Title | Specification |
|---|---|
Input Interface | 1 x DP |
Input Resolution | Up to 5760 x 1080@60Hz(windows os) |
Output Interface | 3 x HDMI1.3 |
Output Resolution | Up to 1920 x 1080@60Hz(3 screen) / Up to 3840 x 2160@60Hz(2 screen) |
Voltage | DC 5V |
Power | 5W |
Size | 150mm(L) x 71mm(W) x 20mm(H) |
Weight | 0.3KG |
